SPECIFICATIONS

Guid rail: Taiwan Hiwin Guide Rail

Marking Area: 120mm *30mm

Marking Depth: 0.1-1.2mm

Marking Materials: Metal Brass Aluminum Iron Steel

Marking Speed: 1-4 Characters/second

Model: ML-SC12030A

Power Supply: 100-240V/50-60Hz

Product name: Portable hand held Pneumatic marking machine

Volume: 22*18*8cm

brand name: Nobuwile

core components: Motor

engraving speed: 1-100characters/minute

key selling points: Easy To Operate

machine type: operated handheld marking machine

machinery test report: Provided

package: Aluminum foil box

place of origin: Shandong, China

rated power: ≤100W

video outgoing-inspection: Provided

warranty: 1 Year

weight (kg): 5.5

Features
1. Computer editing, controller B (windows system) can be option, small size, light weight, mobile marking.
2. Handheld on-site marking for large equipment, heavy work piece.
3. The controller can automatically increment the serial numbers, trademarks,etc.
4. Permanent marking.
5. Can be easily integrated into industrial production lines.

Applications

Related Products Display

Handheld marking machine

1). Man-machine interface: embedded ARM9 industrial control platform, full-screen touch.
2). Display system: 7-inch true color touch screen (industrial grade), software embedded control system.
3). Drive Control Card: ARM+STM 32 Dual Bit Processor
4). Stepper motor driver: Fully digital drive, no noise operation, extremely smooth marking effect, automatic semi-flow, Stepper
5). Motor: Sanyo Denki JAPAN, or high quality domestic motor (features: low noise, large torque, low heat)
6). Transmission mechanism /Guide Rail: Taiwan Hiwin (characteristics: high precision, low operating noise, closed type)
7). Print pin: The whole piece made-in- Japan, is the high quality composite material.
8). Suitable for mobile coding, the integrated design is more convenient.
9). Software versions in English and Chinese version.
Product advantages:
1). The whole machine adopts imported industrial grade components with high marking precision and long service life.
2). The controllor adopts industrial control system, which has strong anti-interference ability and strong environmental
adaptability.
3). The marking head adopts double-rail structure, which has long service life and good impact resistance.
4). standard Windows design style, with a good man-machine dialogue function, easy for the operator to quickly grasp.
5). can directly observe the marking effect on the screen, making debugging more convenient and free, can track the mark on the
screen.
6). application range: a variety of shapes, materials.
7). working hours: can work continuously > 24 hours.

Model	ML-SC12030A
Type of Electric Hand Held Dot Peen Marker	Portable Marking & Engraving
Controller	Built-In Software and Touch Screen
Marking Area	120mm x 30mm
Marking Speed	1~4 characters/s (5mm height)
Preciseon Repeatability	0.001mm
Marking Depth	0.1mm~2mm（according to material）
Power Supply	AC 100V ~ 240V 50HZ/60HZ
Other Device Request	No need of extra devices such as computer and pneumatic air compressor
Speical Technology	marking place detect and can mark on uneven surface such as round part
Optional	standard version needs to be connected to a power source, the customer also can choose the battery version to make it more portable.
Marking Content	English characters, number, all kinds of graphic outline, logo, dot matrix 2D codes, Barcode, Serial Number, circle Letter and etc.

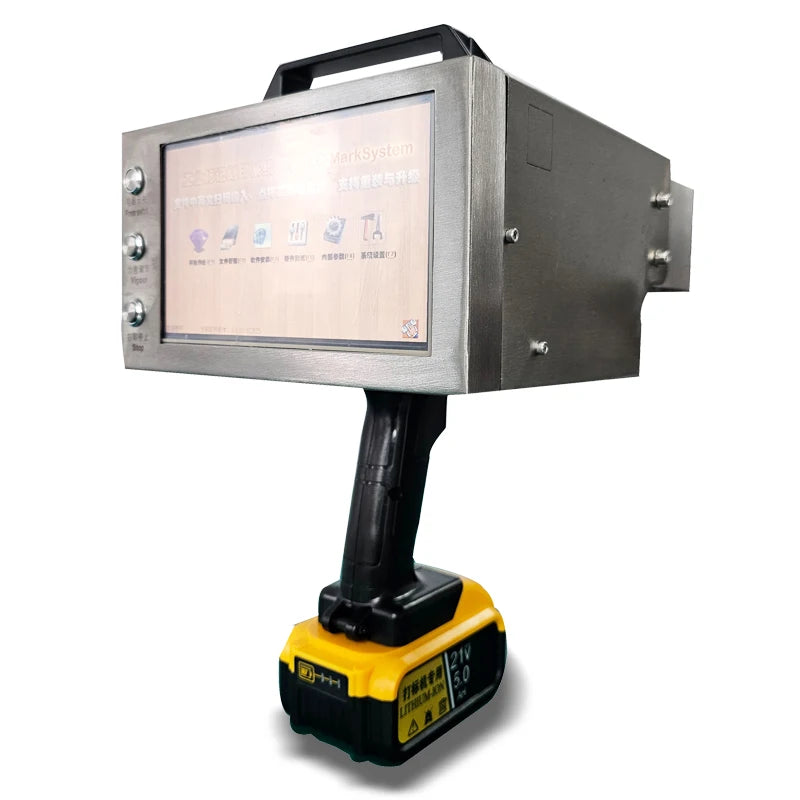

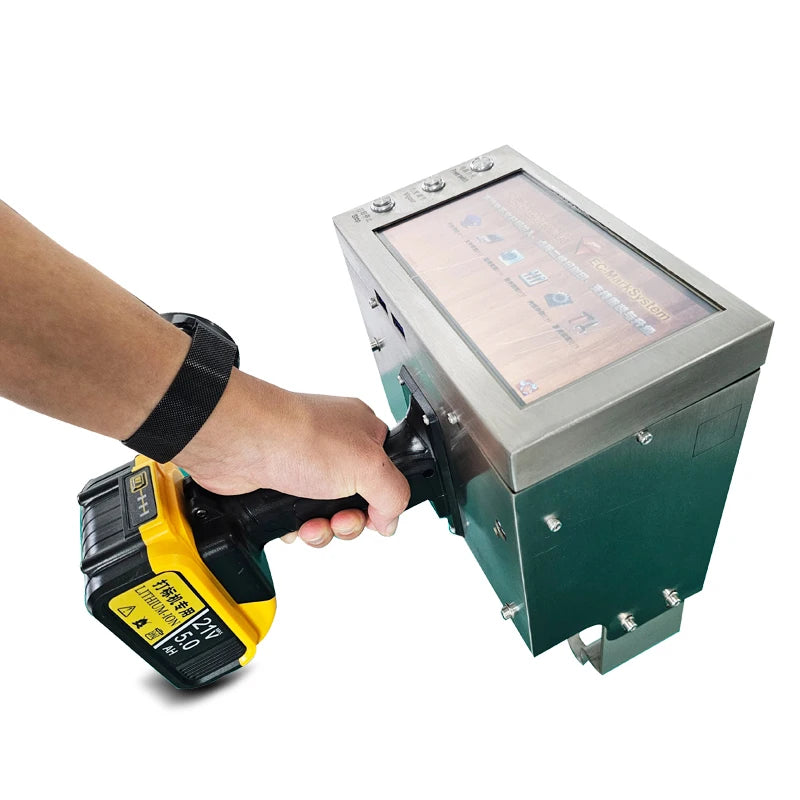

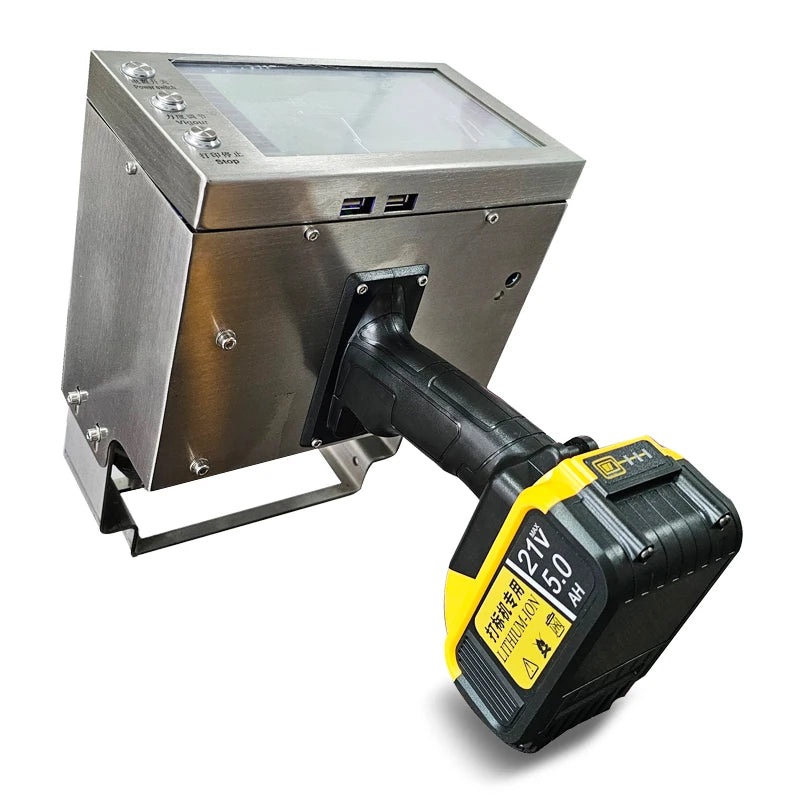

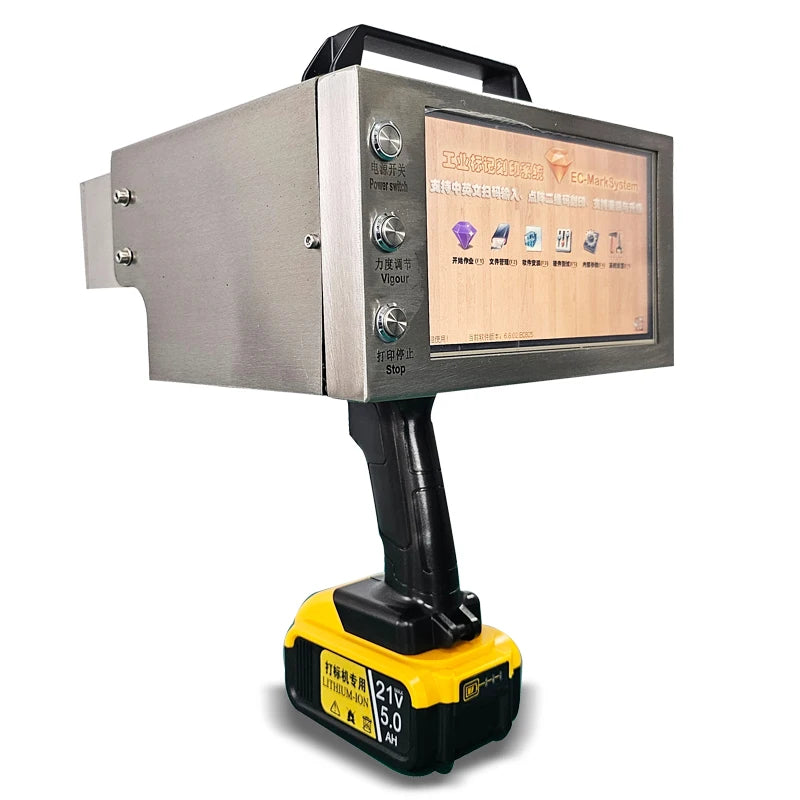

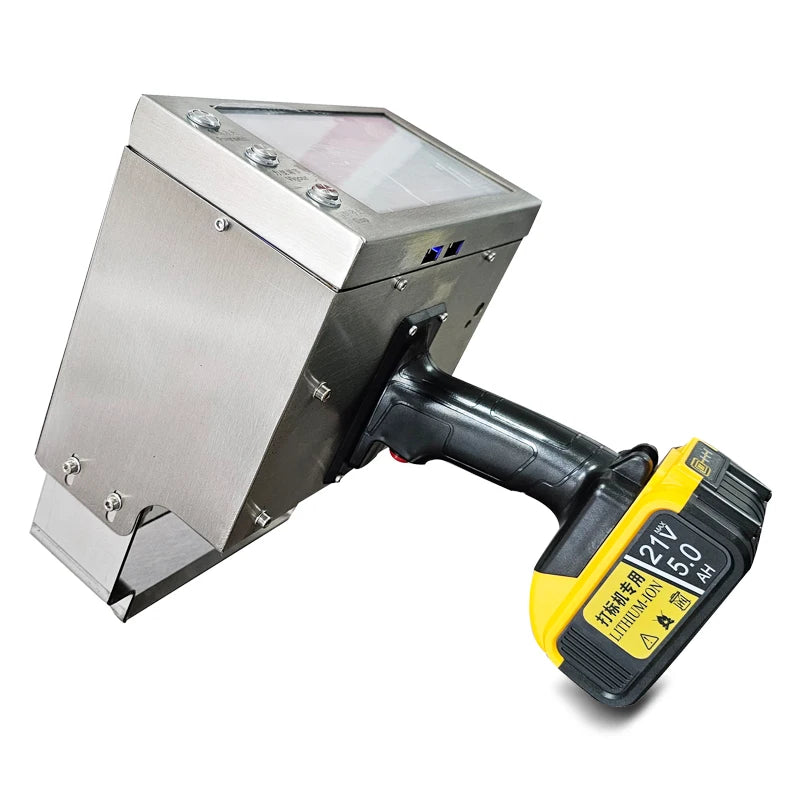

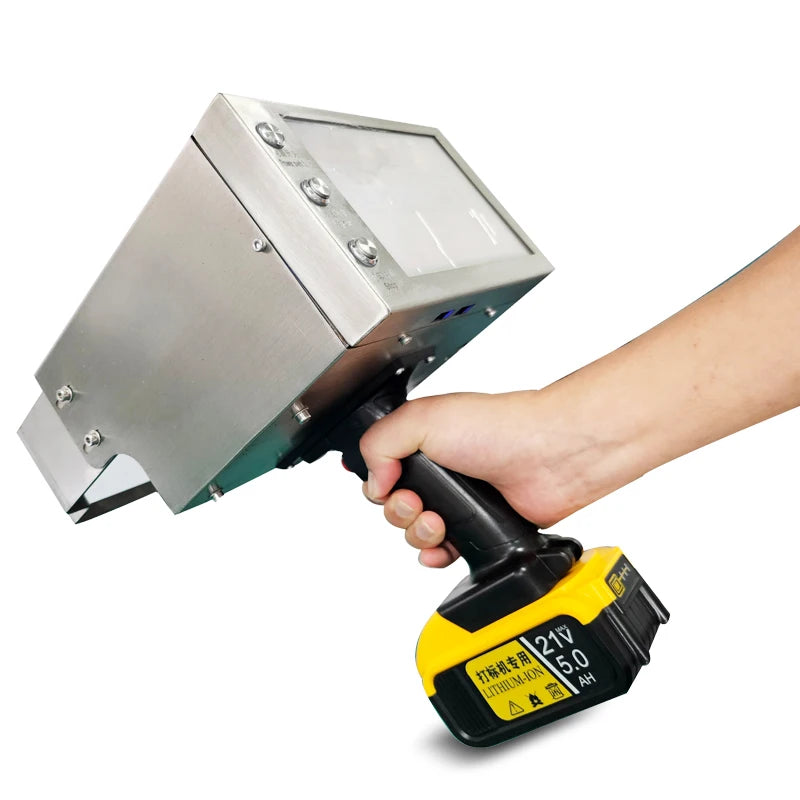

Lithium-battery operated handheld marking machine's Parameters
Marking range			120mm × 30mm
Marking depth			0.01-2mm
Driving voltage			DC24V
Power supply mode			single exchange 110-240V global universal
Print content			Any Chinese and English characters and numbers. Graphics
Print effect			clear and beautiful
Any graphic that containing in the CAD The machine supports reading data directly from the U disk Machine weight: 4.5kgs, Dimention: 28cm *14.5cm*10.5cm

Packing & Delivery

Exquisite aluminum foil box packaging

No minimum order quantity required, container orders available~

Jinan minglun machinery co., ltd. is a professional machine manufacturer. located in Jinan city, Shandong Province, China and near to Qingdao port. Our main product is Industrial machinery.Such as,marking machine,hand pallet truck,electric trolley,electric tricycle,sling,cranes,fog machine,feed pellet machine,feed processing machines,small feed production line,wood pellet stove,wood pellet mill,stainless steel mixer,fiberglass mixer,etc. High quality, standard-tested, long-term foreign buyers such as: Europe and America, Africa, Southeast Asia,and South America etc.We can support OEM at the same time. We have a mature, first-class production team, hoping to give each other an opportunity to meet our own needs. Looking forward to establish business with you!

FAQ

Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving
applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
Q: Do you have the manual of machine.
A: Yes,we can provide manual,CD software and video to help you operate the machine expertly.
